3D Printing Drill Guide
3D printing can create multi-hole drill guides that are used to precisely locate fastener holes in large areas of the fuselage structure,which was printed by the F450 printer using the FDM process. The ABS-CF material by FDM 3D printing can print strong and rigid thermoplastics with sufficient strength and hardness to support power drilling tools while accurately positioning holes.
Product Details
Product name:Porous Drill Guide
Printing material:PA plus CF
Process:FDM/FFF 3D printing
The Drill Guide is mainly through the close combination between the bottom surface of the locator and the surface of the sub-machined part to ensure that the drilling direction is the same as the normal direction of the surface of the part to be processed, so that accurate positioning can be achieved, improve work efficiency and reduced costs
Advantages of the 3D Porous Drill Guide
1. For precise positioning of fastener holes in larger areas of the fuselage structure
2. Compared with traditional industry, 3D printing delivery time saves one week
3. 3D printing reduces production costs and improves work efficiency.

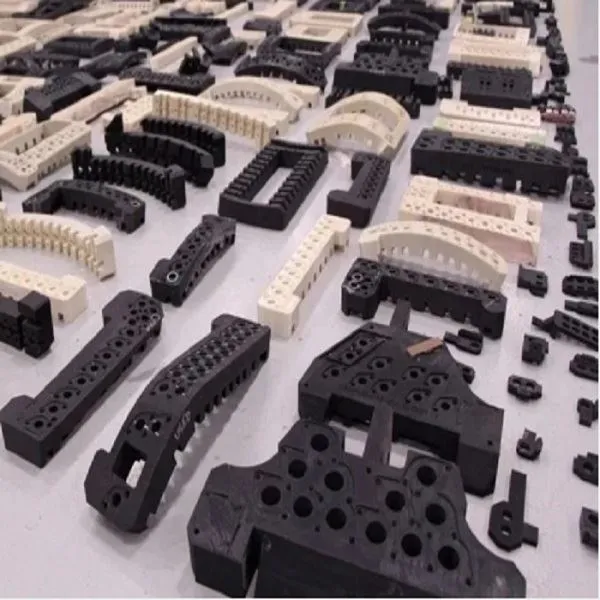

For example,the various parts of the XB-1 demonstration aircraft use a 3D printing multi-hole drill guide to drill a large number of holes in the fuselage structure. As shown as below.
About 3D Printing CF plus ABS Material
3D printing carbon fiber composite material has the advantages of simple process, low processing cost and high utilization rate of raw materials. During processing, it can speed up the development cycle and save development costs. ABS/CF material is a short-cut carbon fiber filled thermoplastic printed by FFF/FDM printer. It is composed of thermoplastics (PLA,ABS,PA). This thermoplastic is reinforced by tiny carbon fibers which is mainly used in aerospace, new energy Automobile, military, etc. FDM ABS-CF10 has the material properties of 10 percent chopped carbon fiber, making it a strong replacement for metal parts
FDM/FFF specification
Technology | FDM/FFF 3D Printing |
Max building volume | 406355406mm |
Accuracy | ±0.5mm |
Layer thickness | 0.250.33mm |
Min wall thickness | 0.150.25mm |
Material | ABS-CF, ABS,ASA, PC, Nylon, etc. |
Material Performance | Approximately 80 percent of injection molded parts |
file format | STL, STEP, IGS, OBJ, etc. |
MOQ | 1 piece |
Printing time | Depend on the structure, usually 1—5 business days |
Country of origin | Shenzhen of China |
